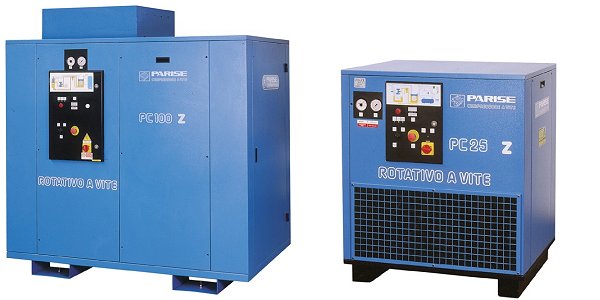

Compressori rotativi a vite serie PCZ
Screw-type compressor units PCZ series


Modello Serbatoio / Tipo Litri 1' Potenza CV Potenza kW Giri /1' Pressione bar Pressione PSI Tens/Fasi/Freq Dimensioni Peso Rumore dB
PC 20 Z 8B - 2200 20 14,7 4670 8 116 400/3/50 1050x850x1120 330 70
PC 20 Z 10B - 2000 20 14,7 3960 10 145 400/3/50 1050x850x1120 330 70
PC 25 Z 8B - 2800 25 18,4 5550 8 116 400/3/50 1050x850x1120 345 70
PC 25 Z 10B - 2450 25 18,4 4700 10 145 400/3/50 1050x850x1120 345 70
PC 25 Z 13B - 2000 25 18,4 3990 13 189 400/3/50 1050x850x1120 345 70
PC 30 Z 8B - 3250 30 22,1 6210 8 116 400/3/50 1050x850x1120 372 70
PC 30 Z 10B - 2850 30 22,1 5560 10 145 400/3/50 1050x850x1120 372 70
PC 30 Z 13B - 2400 30 22,1 4720 13 189 400/3/50 1050x850x1120 372 70
PC 30 Z 8C - 3550 30 22,1 4915 8 116 400/3/50 1200x1000x1200 392 70
PC 30 Z 10C - 3050 30 22,1 4380 10 145 400/3/50 1200x1000x1200 392 70
PC 40 Z 8C - 4750 40 29,4 6250 8 116 400/3/50 1200x1000x1200 502 70
PC 40 Z 10C - 4300 40 29,4 5590 10 145 400/3/50 1200x1000x1200 502 70
PC 40 Z 13C - 3450 40 29,4 4650 13 189 400/3/50 1200x1000x1200 502 70
PC 50 Z 8C - 5600 50 36,8 6980 8 116 400/3/50 1200x1000x1200 550 70
PC 50 Z 10C - 5000 50 36,8 6610 10 145 400/3/50 1200x1000x1200 550 70

Click for enlarge

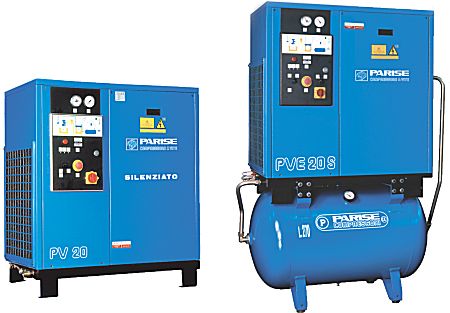

Compressori rotativi a vite serie PVE modulari verticali con essicatore
Screw-type vertical compressor units PV series


Modello Serbatoio / Tipo Litri 1' Potenza CV Potenza kW Giri /1' Pressione bar Pressione PSI Tens/Fasi/Freq Dimensioni Peso Rumore dB
PV 5,5 - 550 5,5 4 - 10 145 400/3/50 105/55/110 140 62
PV 7,5 - 750 7,5 5,5 3390 10 145 400/3/50 105x55x110 140 65
PV 10 - 950 10 7,4 4120 10 145 400/3/50 105x55x110 150 68
PV 15 - 1550 15 11,0 6235 10 145 400/3/50 105x55x110 180 68
PV 20 - 1980 20 14,7 8110 10 145 400/3/50 105x55x110 190 70
PV 5,5 S 270 / 550 5,5 4 - 10 145 400/3/50 115x60x180 220 62
PV 7,5 S 270 / 750 7,5 5,5 3390 10 145 400/3/50 115x60x180 220 65
PV 10 S 270 / 950 10 7,4 4120 10 145 400/3/50 115x60x180 230 68
PV 15 S 500 / 1550 15 11,0 6235 10 145 400/3/50 115x60x180 260 68
PV 20 S 500 / 1980 20 14,7 8110 10 145 400/3/50 115x60x180 270 70
PVE 5,5 - 550 5,5 4 - 10 145 400/3/50 105x55x110 180 62
PVE 7,5 - 750 7,5 5,5 3390 9,7 141 400/3/50 105x55x110 180 65
PVE 10 - 950 10 7,4 4120 9,7 141 400/3/50 105x55x110 190 68
PVE 15 - 1550 15 11,0 6235 9,7 141 400/3/50 105x55x110 220 68
PVE 20 - 1980 20 14,7 8110 9,7 141 400/3/50 105x55x110 245 70
